DirectOutput.Cab.Toys.Layer Namespace Reference

Classes

class  AlphaMappingTable
 Static class containg a mapping table which is used for faster alpha mapping of toys supporting layers with alpha channels.
class  AnalogAlphaToy
 This toy handles analog values (0-255) in a layer structure including alpha value (0=completely transparent, 255=fully opaque) and outputs the belended result of the layers on a single output. More...
interface  ILayerToy< LayerElementType >
class  LayerDictionary< LayerElementType >
 Dictionary for RGBALayer objects. More...
class  MatrixDictionaryBase< MatrixElementType >
 Sorted dictionary of layers for the matrix toys. More...
class  RGBAToy
 Thie RGBAToy controls RGB leds and other gadgets displaying RGB colors.

The RGBAToy has multilayer support with alpha channels. This allows the effects targeting RGBAToys to send their data to different layers. Values in a layer do also have a alpha/transparency channel which will allow us to blend the colors/values in the various layers (e.g. if a bottom layer is blue and top is a semi transparent red, you will get some mix of both or if one of the two blinks you get changing colors).
The following picture might give you a clearer idea how the layers with their alpha channels work: More...

Enumerations

enum  RGBOrderEnum {
  RGB = 1 , RBG = 2 , GRB = 3 , WS2812 = 3 ,
  GBR = 4 , BRG = 5 , BGR = 6
}
 Enum used to define the order of the colors of a multicolor element (e.g. RGB led). Depending on the connection of the multi color element, the order of the colors does maybe not match the default Red - Green - Blue order (e.g. addressable WS2812 led chips are using Green - Red - Blue). More...
enum  LedStripArrangementEnum {
  LeftRightTopDown , LeftRightBottomUp , RightLeftTopDown , RightLeftBottomUp ,
  TopDownLeftRight , TopDownRightLeft , BottomUpLeftRight , BottomUpRightLeft ,
  LeftRightAlternateTopDown , LeftRightAlternateBottomUp , RightLeftAlternateTopDown , RightLeftAlternateBottomUp ,
  TopDownAlternateLeftRight , TopDownAlternateRightLeft , BottomUpAlternateLeftRight , BottomUpAlternateRightLeft
}
 Enum used to specify the arrangement of the ledstripe(s). More...

Enumeration Type Documentation

◆ LedStripArrangementEnum

Enum used to specify the arrangement of the ledstripe(s).

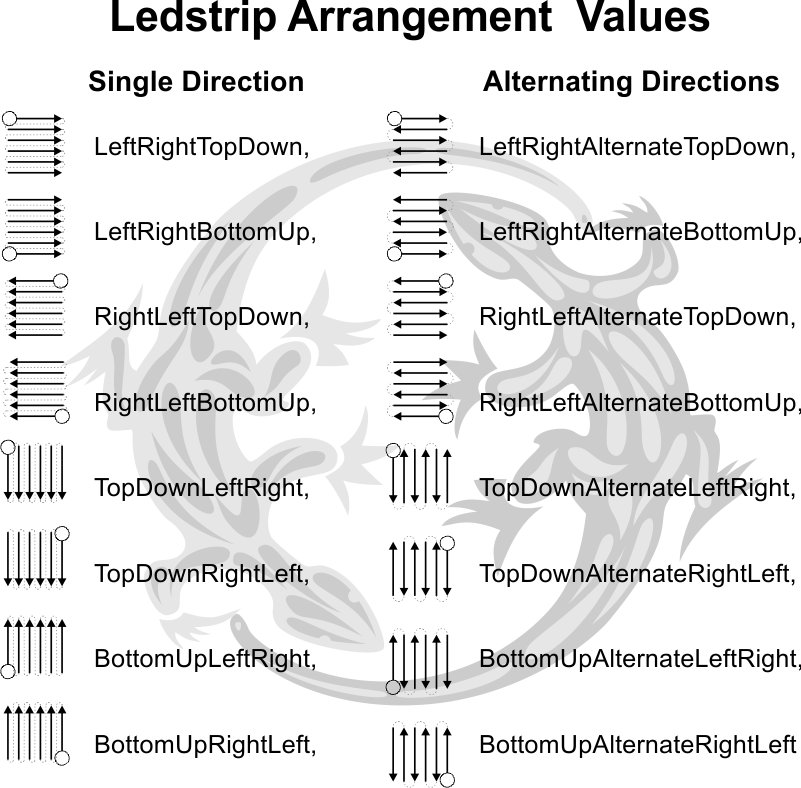

Supported led string arrangements
Enumerator
LeftRightTopDown
LeftRightBottomUp
RightLeftTopDown
RightLeftBottomUp
TopDownLeftRight
TopDownRightLeft
BottomUpLeftRight
BottomUpRightLeft
LeftRightAlternateTopDown
LeftRightAlternateBottomUp
RightLeftAlternateTopDown
RightLeftAlternateBottomUp
TopDownAlternateLeftRight
TopDownAlternateRightLeft
BottomUpAlternateLeftRight
BottomUpAlternateRightLeft

◆ RGBOrderEnum

Enum used to define the order of the colors of a multicolor element (e.g. RGB led). Depending on the connection of the multi color element, the order of the colors does maybe not match the default Red - Green - Blue order (e.g. addressable WS2812 led chips are using Green - Red - Blue).

Enumerator
RGB

Red-Green-Blue (usual color order)

RBG

Red - Blue - Green.

GRB

Green - Red - Blue (WS2812 led chips are using the scheme)

WS2812

WS2812 led chip (uses green - red - blue color order)

GBR

Green - Blue - Red.

BRG

Green - Blue - Red.

BGR

Blue - Green - Red.
